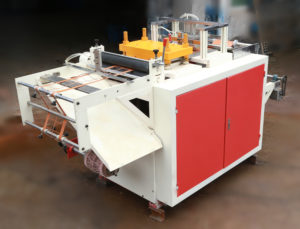

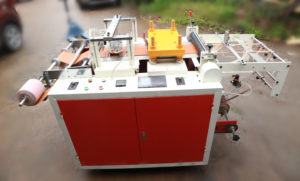

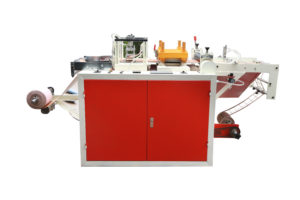

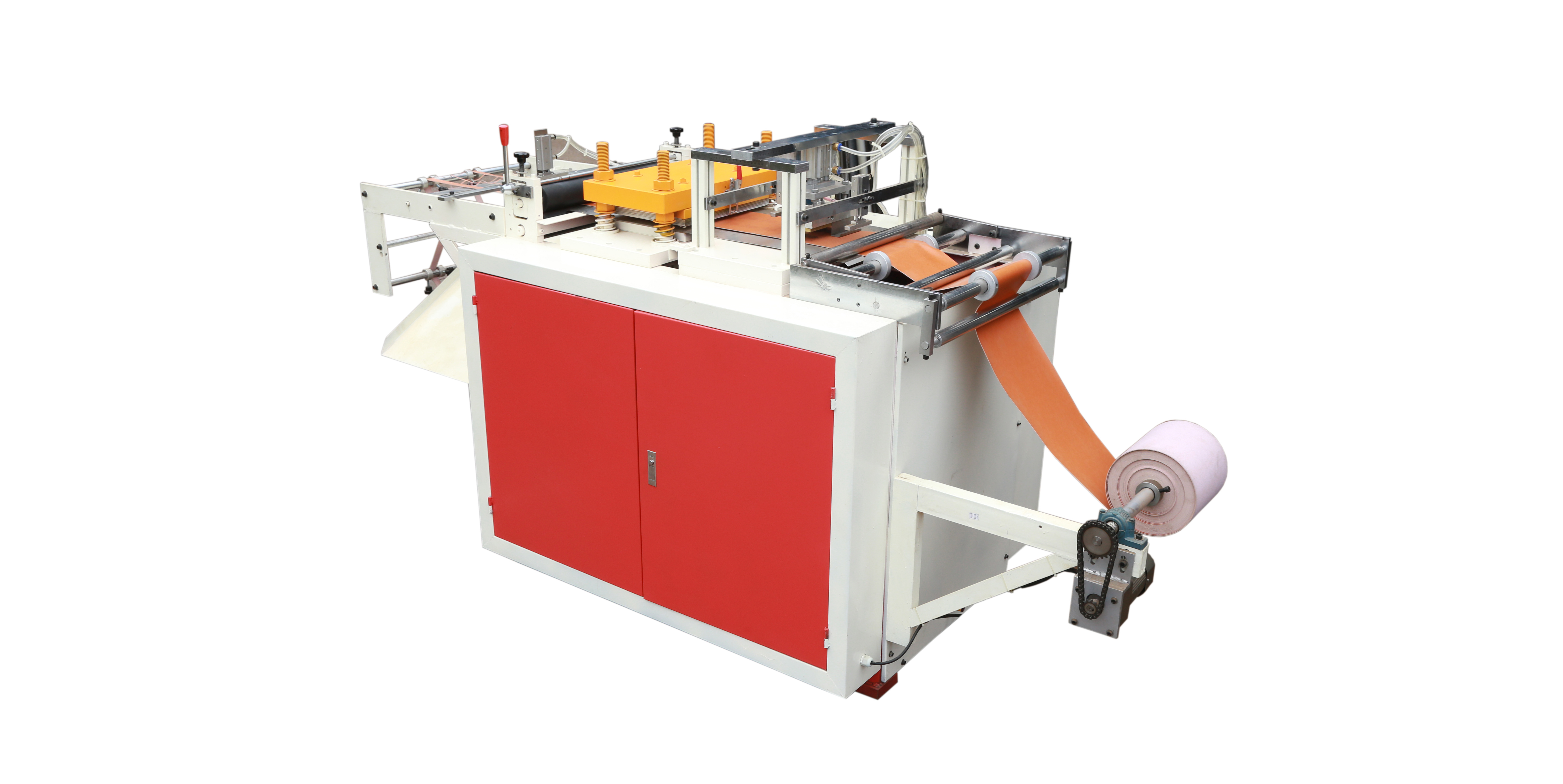

LCE25 Automatic Leather Patch Embossing and Die Cutting Machine

Inquiry    Download PDF

Auto Leather Patch die cut embossing machine

• Description

• Application for:

  •  Die cutting and Embossing Leather patch, trademark, mark in any shape and pattern;

  Hot stamping function can be added if needed.

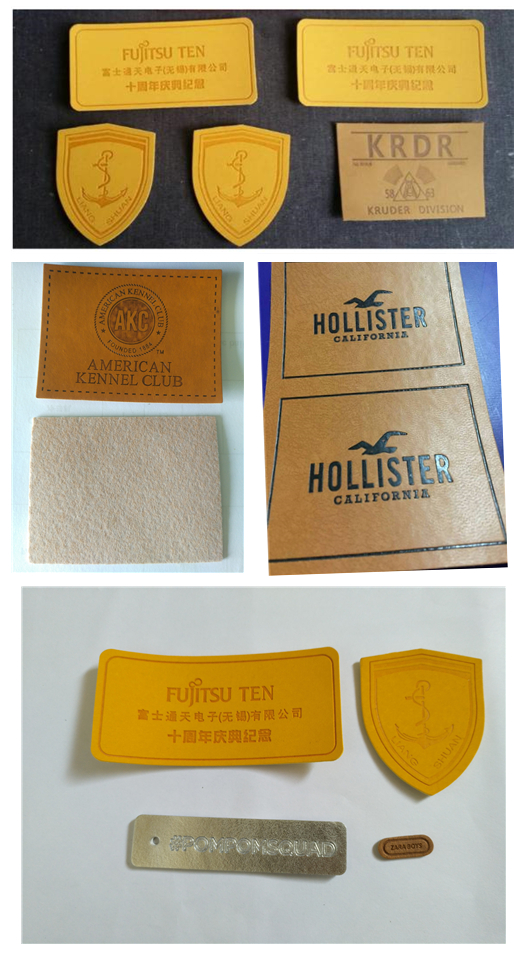

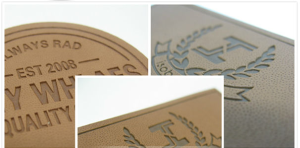

  • Finished Product Samples below:





















  Parameter

  Model	LCE25	LC25
  Name	Automatic Leather patch cutting and embossing machine	Automatic Leather patch cutting machine
  Function	Die Cutting & Embossing	Die Cutting
  Cutting board size	350 * 250mm	350 * 250mm
  Embossing Size	160*80mm	/
  Cutting Speed	10,000PCS/Hour	10,000PCS/Hour
  Embossing Speed	4,000PCS/Hour	/
  Applicable material for embossing	leather, PU ect. in roll type	/
  Embossing Heating Temperature	400℃	/
  Frequency	<0.5mm	/
  Can die material	leather / PU etc.	leather / PU etc.
  Die Cut Mold Material	Steel Blade + Wooden	Steel Blade + Wooden
  Embossing Mold material	Copper	/
  Maximum cutting pressure	16 (N / Cm2)	16 (N / Cm2)
  Total consumption	Motor 1.5KW, Embossing about 0.5KW, Heating about 0.5KW, Cutting about 0.5KW. Total 3KW	Motor 1.5KW
  The maximum feed size	320mm	320mm
  After-sales Service Provided	24h Online Engineers Service	24h Online Engineers Service
  Dimensions(L*W*H):	3500 * 1000 * 1300mm	3500 * 1000 * 1300mm
  Weight	500KG	480KG

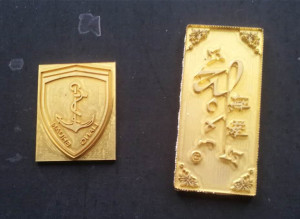

  Embossing Mold/ die

























  Feature & Gallery



  • Platen die under the pressure of high-precision, computer-controlled slice drag materials, die-cutting, waste collection once.

  • Composition:

  Feeder station
  Die host
  Induction motor with discharge
  Automatic exhaust winding
