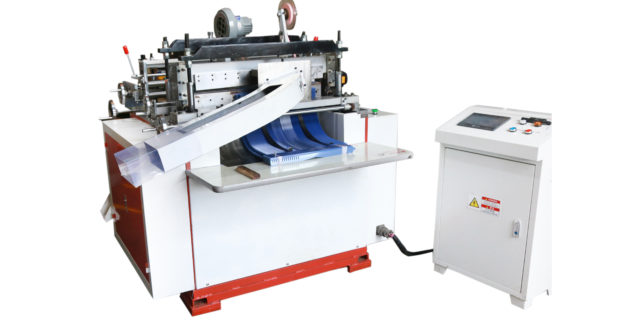

PSC96 Auto Shirt Plastic Collar Band Die Cut Machine
-
• Application: die cutting plastic STRAIGHT shirt collar bands ONLY, collar supports, collar strips in PP, PVC, PET, PS material.
• Finished Product Samples below:
Tip: For die cutting and punching special shapes of collar bands, which two sides of collar bands are NOT Parallel or Straight.
BWA model is for different shapes.
• Make different sizes of shirt plastic collar band by changing Raw Material Rolls, adjusting Wheels, dies/molds or changing different die/molds.
• Hot Stamping Function is optional.

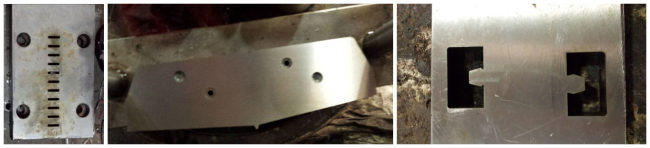

• Mold is made of high quality steel.• Die/Mold photo：

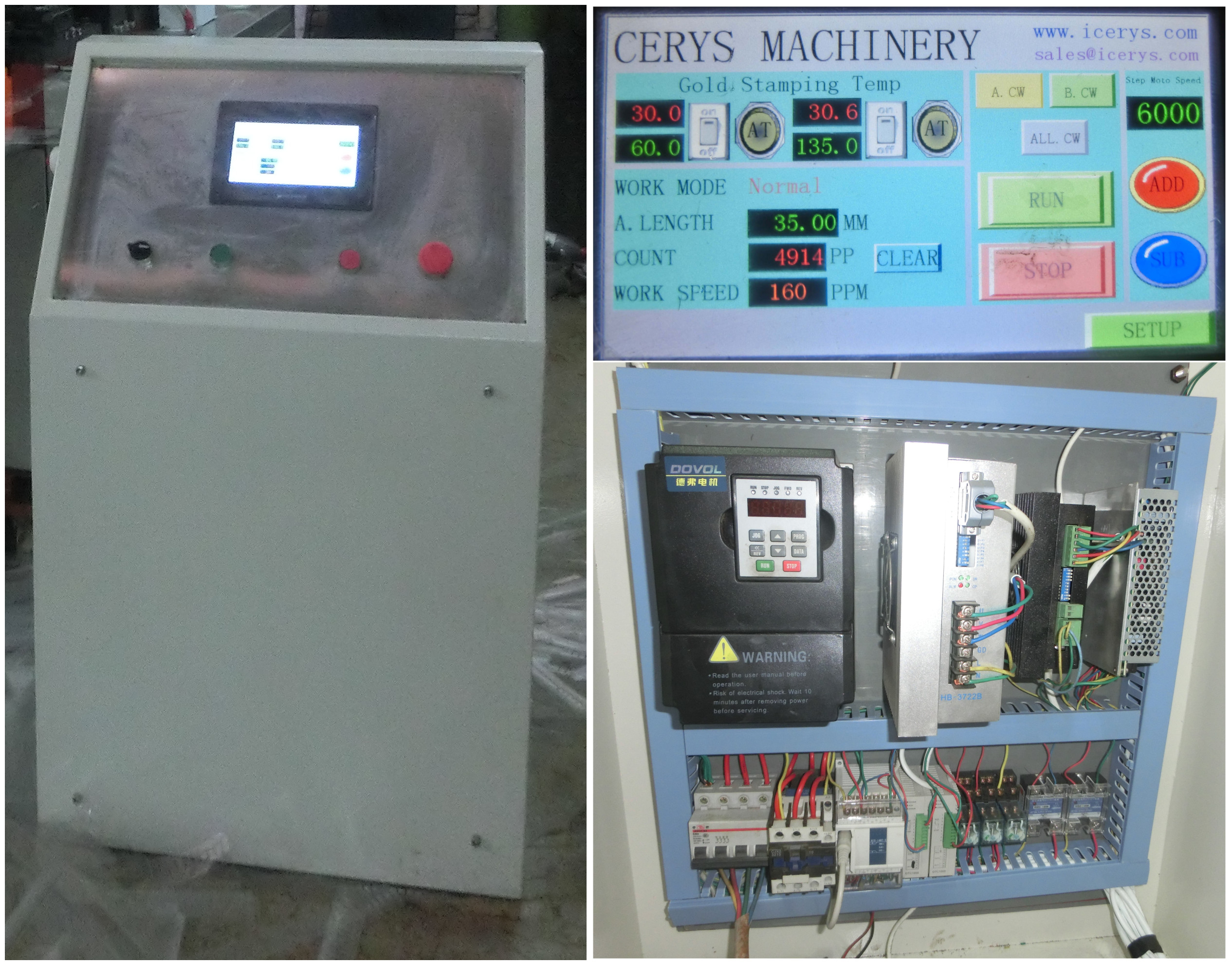

• PLC System
• High speed with roller press.
• Using high quality material for machine and components.
• Service life can be more than 10 years. Model
PSC96
Cutting Area Max L900*W60mm (35.4*2.36 Inch)
Min L250*W28mm (9.84*1.1inch)Production Speed 8400PCS/Hour Cutting Thickness PVC: 0.25-0.7mm
PET: Better < 0.4mmDie Quantity 3 Dies Suitable Materials of Collar Band PVC, PET, PP, PS etc.
Material Extra Width than collar band's length 2mm Numbering Function Optional Shape Customized Power 2.5KW
Voltage Customized After-sales Service Provided
24h Online Engineers Service
Weight 1000KG Dimensions(L*W*H):
2.66*1.66*1.56 m
Total CBM 6.87CBM Machine Detail Photo
-
• Machine Running:
• How to Set up PVC Raw Material Rolls, adjust Collar Band Length, Width, Triangle Gap:
