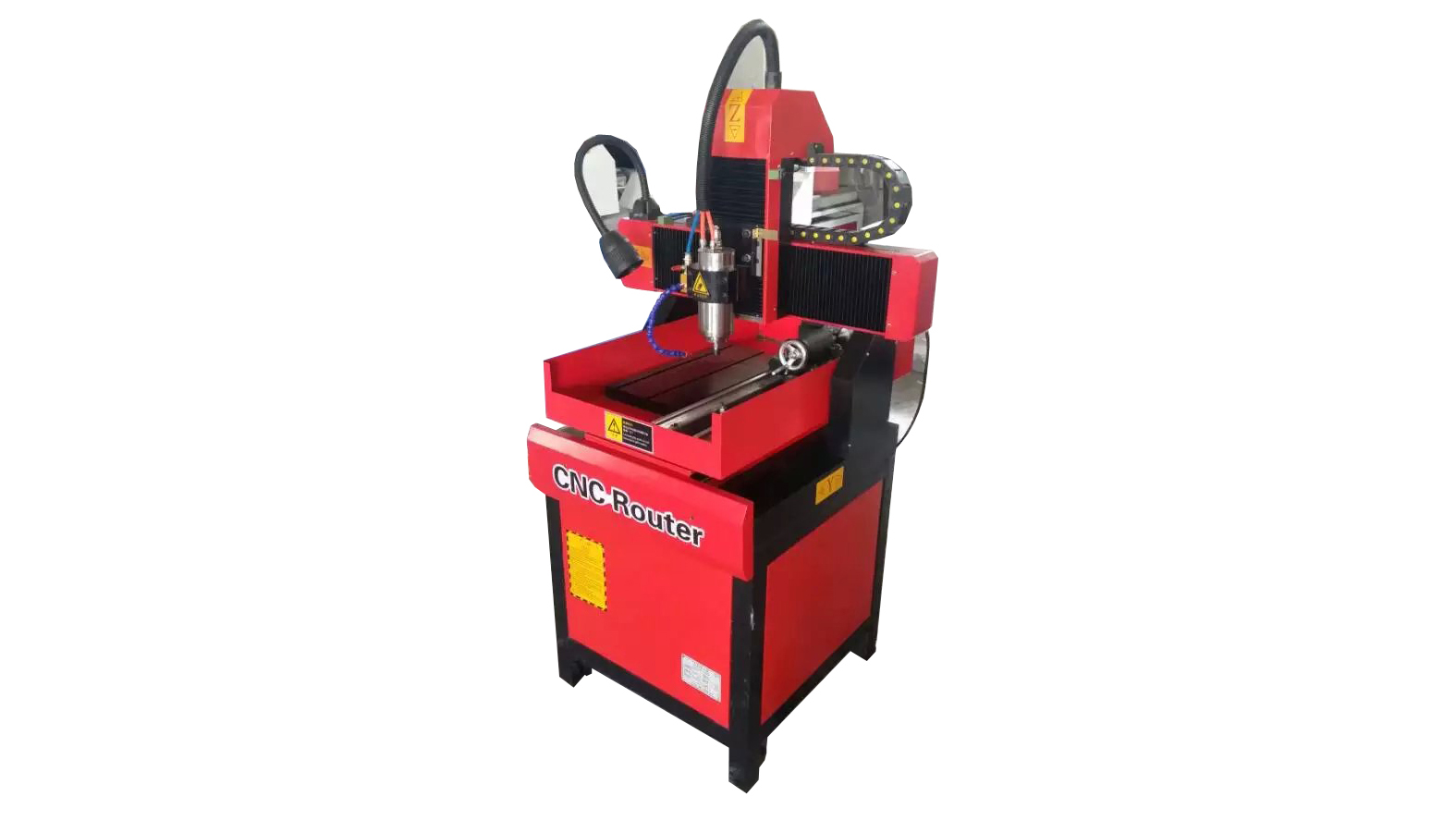

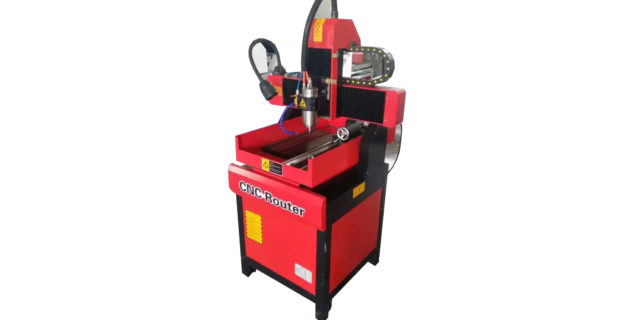

HME66 CNC Metal Engraving Machine
-
Application
Engraving different patterns and sizes of metal molds/dies in copper, aluminum, stainless steel, Wood, plastic sheet etc. Can engrave 3D for hook surface.
Feature
- Adopt the high-strength whole cast iron bed, X, Y, Z each axis are imported linear guide.
• Full mold production, mechanical stability is guaranteed.
• Body, gantry columns are used as a whole metal casting parts, good rigidity, smooth operation, the overall vibration of the machine is small.
• X, Y, Z each axis are imported ball screw, slider preload configuration, to ensure that the slider without gaps, processing accuracy is guaranteed.
• Compatible with TYPE3 / ARTCAM / Wentai / carved / mastcam / ug and other CAD / CAM design software.
• Good at all types of work pieces for efficient precision machining. - Multi sizes of machines can be choosed.
Parameter
Model
HME66
XY working area 600*600mm
Z working area >150mm
A axle Diameter
100mm
Table size 680*680mm
Max engraving speed 0-10m/min
Resolution ratio 0.001mm
Reposition accuracy 0.02mm
Max feeding height 150mm
Command G code*.u00*.mmg*.plt Surroundings for software Windows98/2000/xp Power(not include the spindle) 300W Power AC220V/50Hz spindle power rate 1.5KW spindle rotating speed 0-24000rpm/min Drive motor Stepper Video
- Adopt the high-strength whole cast iron bed, X, Y, Z each axis are imported linear guide.
