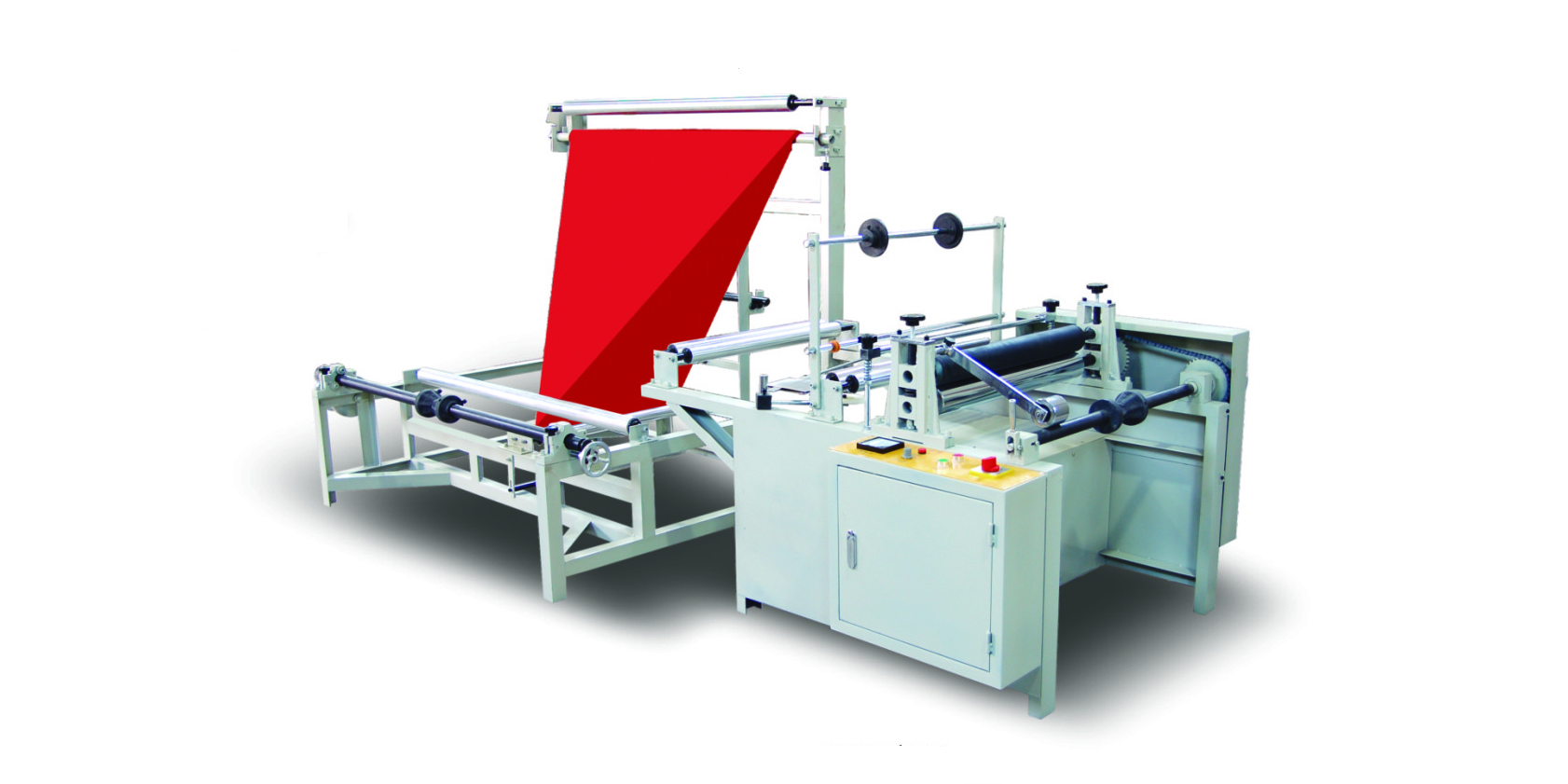

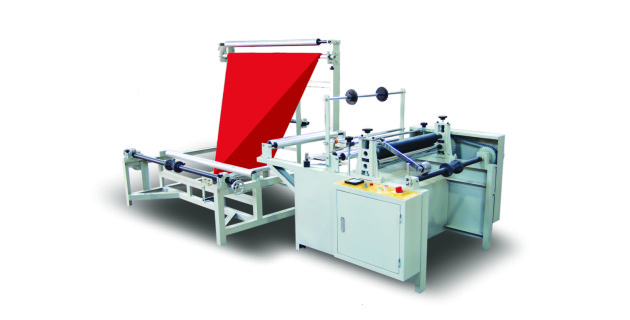

BF6 Automatic OPP BOPP plastic packing bags Folding Stick Gluing Making Machine

Inquiry    Download PDF

• Description
• Parameter
• Gallery
• Videos

• BF6 Automatic OPP BOPP material

  & buttom Inward  Folding, tape Gluing Machine

  •Use & Feature:

  1. Used for plastic OPP material rolls folding, bag buttom inward folding, tap gluing machine for OPP Packing bags.
  2. Materials including BOPP, PP, CPP, POF, PE etc.
  3. Connected with BC7 to make finished OPP bags.
  4. Ultrasonic, EPC and servomotor functions can be customized with different price.
  5. Automatic double-face gluing, removing organ bottom, coating pear film，stack to rolls.
  6. Optional functions of ultra-audible sound hobbing and unreeling error correction.

• Model	BF6
  Bag material	BOPP, OPP, PP, PE, etc.
  Max. Material Width (mm)	1200mm
  Max. Finished product Width (mm)	600mm
  Min. Material Width (mm)	100mm
  Min. Finished product Width (mm)	50mm
  Speed (m/Min)	60
  Total power (kw)	1.5
  Voltage	Customized
  Complete weight	650 kg
  Dimension	2800x1500x1500mm
  After-sales Service Provided	24h Online Engineers Service

• Machine Detail Photo












•
