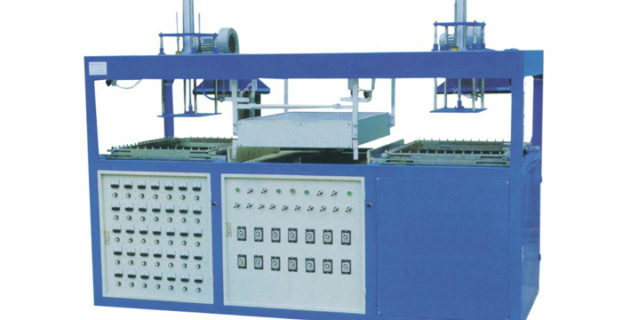

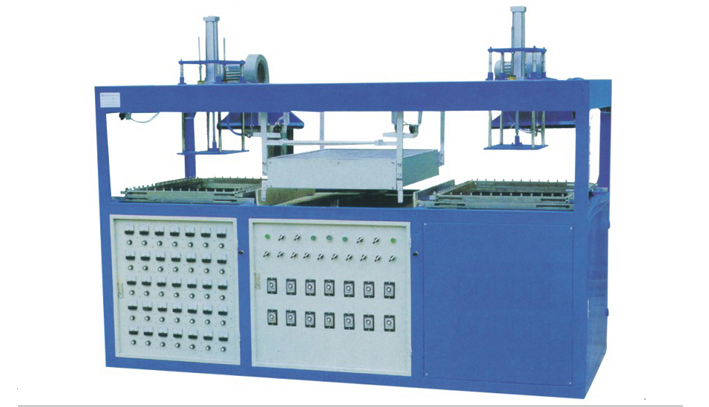

SBF61 Semi-auto Duplex Blister Forming Vacuum Foaming Machine
- Application
Semi-auto Duplex Blister Forming Vacuum Foaming Machine, for Making different sizes and shape of plastic collar butterflies, blister boxes, trays in PVC, ABS,EPS,PP,PS,PVC,PETG,APET,HIPS material etc.
- Feature
the vacuum function of delay
2. Automatic cold
3. Automatic sprinkler
4. Vibration stripping 500Finished products
Parameter
Model
SBF61 Molding width 560mm/610mm Forming Length 400mm/850mm Forming height 120mm Production Efficiency 120-280 times / hour Power 15kw / h
Voltage 380V-220V 50HZ (three-phase four-wire ), OR customized Air pumps requirement 5HP After-sales Service Provided
24h Online Engineers Service
Weight 900KG Dimensions(L*W*H):
2.6*1.3*2.0m
Total CBM 6.76CBM
